Product Summary

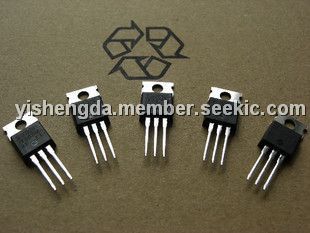

The IRF3205 is a Power MOSFET. It utilizes advanced processing techniques to achieve extremely low onresistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that IRF3205 is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRF3205 absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 110A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 80 A; (3)IDM ,Pulsed Drain Current: 390A; (4)PD @TC = 25℃, Power Dissipation: 200 W; (5)Linear Derating Factor: 1.3 W/℃; (6)VGS, Gate-to-Source Voltage: ± 20 V; (7)IAR, Avalanche Current: 62 A; (8)EAR, Repetitive Avalanche Energy: 20 mJ; (9)dv/dt, Peak Diode Recovery dv/dt: 5.0 V/ns; (10)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to + 175℃; (11)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃; (12)Mounting torque, 6-32 or M3 srew: 10 lbf.in (1.1N.m).

Features

IRF3205 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated.

Diagrams

IRF3205 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRF3205
IRF3205

International Rectifier

MOSFET N-CH 55V 110A TO-220AB

Data Sheet

1-250: $1.12
IRF3205L
IRF3205L


MOSFET N-CH 55V 110A TO-262

Data Sheet

0-150: $1.86
IRF3205SPBF
IRF3205SPBF

International Rectifier

MOSFET

Data Sheet

0-1: $1.73
1-25: $1.12
25-100: $0.89
100-250: $0.88
IRF3205PBF
IRF3205PBF

International Rectifier

MOSFET MOSFT 55V 98A 8mOhm 97.3nC

Data Sheet

0-1: $1.96
1-25: $1.27
25-100: $0.92
100-250: $0.86
IRF3205LPBF
IRF3205LPBF

International Rectifier

MOSFET MOSFT 55V 110A 8mOhm 97.3nC

Data Sheet

0-1: $1.91
1-25: $1.24
25-100: $0.89
100-250: $0.83
IRF3205S
IRF3205S

International Rectifier

MOSFET N-CH 55V 110A D2PAK

Data Sheet

1-250: $1.10
IRF3205ZPBF
IRF3205ZPBF

International Rectifier

MOSFET MOSFT 55V 110A 6.5mOhm 76nC Qg

Data Sheet

0-1: $2.12
1-25: $1.37
25-100: $0.99
100-250: $0.93
IRF3205STRLPBF
IRF3205STRLPBF

International Rectifier

MOSFET MOSFT 55V 110A 8mOhm 97.3nC

Data Sheet

0-1: $2.41
1-25: $1.57
25-100: $1.13
100-250: $1.06
