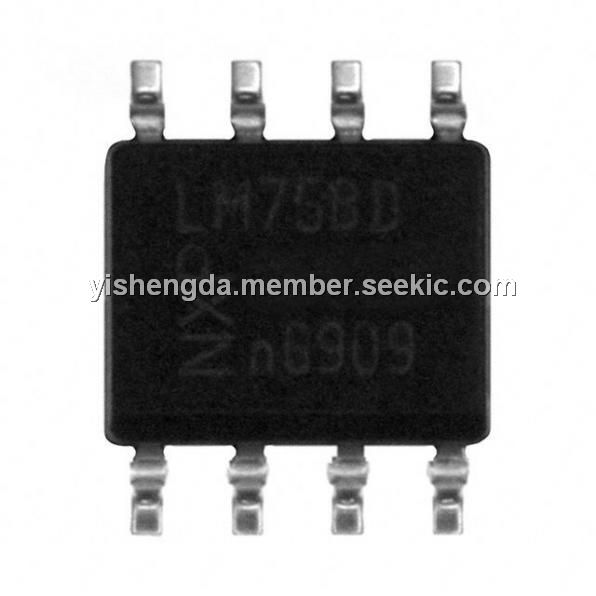

LM75BD

Product Summary

The LM75BD is a temperature-to-digital converter using an on-chip band gap temperaturesensor and Sigma-Delta A-to-D conversion technique with an overtemperature detectionoutput. The LM75B contains a number of data registers: Configuration register (Conf) tostore the device settings such as device operation mode, OS operation mode, OS polarityand OS fault queue as described in Section 7 “Functional description”; temperatureregister (Temp) to store the digital temp reading, and set-point registers (Tos and Thyst) tostore programmable overtemperature shutdown and hysteresis limits, that can becommunicated by a controller via the 2-wire serial I2C-bus interface. The device alsoincludes an open-drain output (OS) which becomes active when the temperature exceedsthe programmed limits. There are three selectable logic address pins so that eight devicescan be connected on the same bus without address conflict.

Parametrics

LM75BD absolute maximum ratings: (1)Supply voltage: -0.3-+6.0V; (2)Input voltage: at input pins -0.3-+6.0V; (3)Input current: at input pins -5.0-+5.0mA; (4)Output sink current: on pin OS -10.0mA; (5)Output voltage: on pin OS -0.3-+6.0V; (6)Stgstorage temperature: -65-+150°C; (7)Junction temperature: -150°C.

Features

LM75BD features: (1)Frequency range: 20 Hz to 400 kHz with bus fault time-out to prevent hanging up thebus ; (2)11-bit ADC that offers a temperature resolution of 0.125 °C; (3)Temperature accuracy of: N ±2 °C from -25 °C to +100 °CN ±3 °C from -55 °C to +125 °C; (4)Programmable temperature threshold and hysteresis set points; (5)Supply current of 1.0 μA in shutdown mode for power conservation; (6)Stand-alone operation as thermostat at power-up; (7)ESD protection exceeds 4500 V HBM per JESD22-A114, 450 V MM perJESD22-A115 and 2000 V CDM per JESD22-C101; (8)Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA; (9)Small 8-pin package types: SO8, TSSOP8 and 3 mm × 2 mm XSON8U.

Diagrams
