Product Summary

The MAX232EWE is a 5V-Powered, Multichannel RS-232 Driver/Receiver. The device is intended for all EIA/TIA-232E and V.28/V.24 communica-tions interfaces, particularly applications where ±12V is not available. Thedevice is especially useful in battery-powered sys-tems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232EWE uses no external components and are recommended for appli-cations where printed circuit board space is critical. The applications of the MAX232EWE include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.

Parametrics

MAX232EWE absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC- 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages, TIN: -0.3V to (VCC- 0.3V); RIN (Except MAX220): ±30V; RIN (MAX220): ±25V; TOUT(Except MAX220): ±15V; TOUT (MAX220): ±13.2V; (5)Output Voltages, TOUT: ±15V; ROUT: -0.3V to (VCC +0.3V); (6)Operating Temperature Ranges: -40℃ to +85ι; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

MAX232EWE features: (1)For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP Package); (2)For Low-Cost Applications ; (3)MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

Diagrams

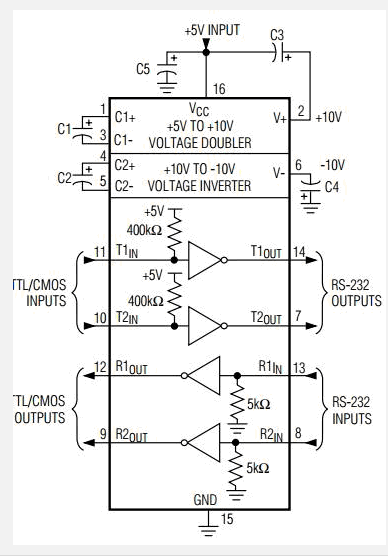

MAX232EWE block diagram
