Product Summary

The MAX706CSA is a microprocessor (μP) supervisory circuit. It is significantly improves system reliability and accuracy compared to separate ICs or discrete components. The MAX706CSA is available in 8-pin SO, DIP, and uMAX packages and are fully specified over the operating temperature range. The applications of the MAX706CSA are Battery-Powered Equipment, Portable Instruments, Computers, Controllers, Intelligent Instruments, Critical uP Power Monitoring.

Parametrics

MAX706CSA absolute maximum ratings: (1)Terminal Voltage (with respect to GND): -0.3V to +6V; (2)All Other Inputs:-0.3V to (VCC + 0.3V); (3)Input Current:VCC:20mA, GND:20mA; (4)Output Current (all outputs):20mA; (5)Continuous Power Dissipation:470.6mW; (6)Operating Temperature Range:-40℃ to +85℃; (7)Junction Temperature:+150℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)Lead Temperature (soldering, 10s):+300℃.

Features

MAX706CSA features: (1)μMAX Package, Small 8-Pin SO; (2)Precision Supply-Voltage Monitors:3.08V; (3)200ms Reset Time Delay; (4)Debounced TTL/CMOS-Compatible Manual Reset Input; (5)100μA Quiescent Current; (6)Watchdog Timer: 1.6s Timeout; (7)Reset Output Signal:Active-Low Only; (8)Voltage Monitor for Power-Fail or Low-Battery Warning; (9)8-Pin Surface-Mount Package; (10)Guaranteed RESET Assertion to VCC = 1V.

Diagrams

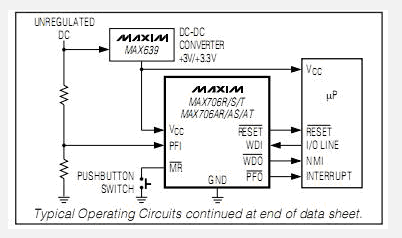

MAX706CSA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

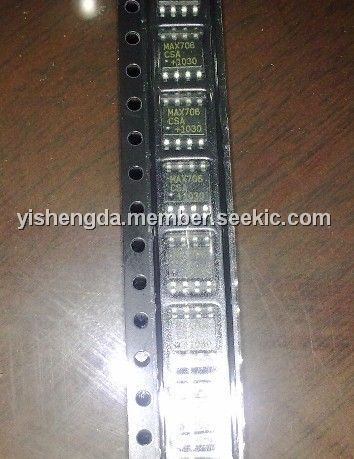

MAX706CSA
MAX706CSA

Maxim Integrated Products

Supervisory Circuits

Data Sheet

Negotiable
MAX706CSA+
MAX706CSA+

Maxim Integrated Products

Supervisory Circuits Single uPower Supervisor

Data Sheet

0-1: $3.76
1-25: $2.52
25-50: $1.82
50-100: $1.81
MAX706CSA+T
MAX706CSA+T

Maxim Integrated Products

Supervisory Circuits Single uPower Supervisor

Data Sheet

0-2080: $1.57
2080-2500: $1.57
MAX706CSA-T
MAX706CSA-T

Maxim Integrated Products

Supervisory Circuits

Data Sheet

Negotiable
