Product Summary

The STK402-020 is a fast static RAM with a nonvolatile electrically erasable PROM (EEPROM) element incorporated in each static memory cell.

Parametrics

STK402-020 absolute maximum ratings: (1)Voltage on Input Relative to VSS: –0.6V to (VCC + 0.5V); (2)Voltage on DQ0-7: –0.5V to (VCC + 0.5V); (3)Temperature under Bias: –55°C to 125°C; (4)Storage Temperature : –65°C to 150°C; (5)Power Dissipation: 1W; (6)DC Output Current (1 output at a time, 1s duration): 15mA.

Features

STK402-020 features: (1)Unlimited READ, WRITE and RECALL Cycles; (2)1,000,000 STORE Cycles to EEPROM; (3)100-Year Data Retention over Full Industrial Temperature Range; (4)Commercial and Industrial Temperatures; (5)28-Pin 300 mil PDIP, 300 mil SOIC and 350 mil SOIC Packages.

Diagrams

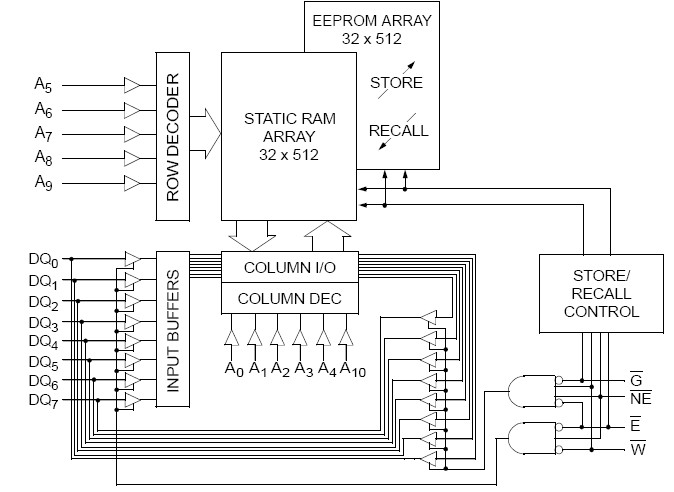

STK402-020 block diagram
