Product Summary
The 2SC945 is an NPN silicon transistor. It is designed for use in driver stage of AF amplifier and low speed switching.
Parametrics
2SC945 absolute maximum ratings: (1)storage temperature: -55 to 125℃; (2)junction temperature: 125℃; (3)maximum power dissipation: 250mW; (4)collector to base voltage, VCBO: 60V; (5)collector to emitter voltage, VCEO: 50V; (6)emitter to base voltagee, VEBO: 5.0V; (7)collector current, IC: 100mA; (8)base current, IB: 20mA.
Features
2SC945 features: (1)high voltage LVCEO: 50V min; (2)excellent hFE linearity.

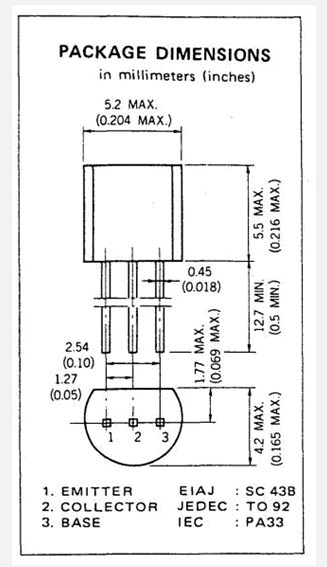

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC945 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC945A-T1B-A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC945-GC |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC945K |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC945LT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC945P |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC945Q |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC945R |
Other |
|
Data Sheet |
Negotiable |
|
||||
