Product Summary
The TMP91FW27UG is a temperature sensor which generates a voltage output proportional to absolute temperature and a control signal from one of two outputs when the device is either above or below a specific temperature range.
Parametrics
TMP91FW27UG absolute maximum ratings: (1)Maximum Output Current (VREF, VPTAT): 2 mA; (2)Maximum Output Current (Open Collector Outputs): 50 mA; (3)Maximum Output Voltage (Open Collector Outputs): 15 V; (4)Operating Temperature Range: –55°C to +150°C; (5)Dice Junction Temperature: +150°C; (6)Storage Temperature Range: – 65°C to +150°C; (7)Lead Temperature (Soldering, 60 sec): +300°C.
Features
TMP91FW27UG features: (1)–558C to +1258C (–678F to +2578F) Operation; (2)61.08C Accuracy Over Temperature (typ); (3)Temperature-Proportional Voltage Output; (4)User Programmable Temperature Trip Points; (5)User Programmable Hysteresis; (6)20 mA Open Collector Trip Point Outputs; (7)TTL/CMOS Compatible; (8)Single-Supply Operation (4.5 V to 13.2 V); (9)Low Cost 8-Pin DIP and SO Packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP91FW27UG |
|

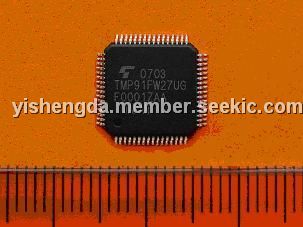

MCU 16BIT 128KB FLASH 64-LQFP |
Data Sheet |
|
|
||||||||||||
|
TMP91FW27UG(JZ) |
Toshiba |
16-bit Microcontrollers (MCU) TLCS900/L1 128K Flash |
Data Sheet |
|
|
||||||||||||
