Product Summary

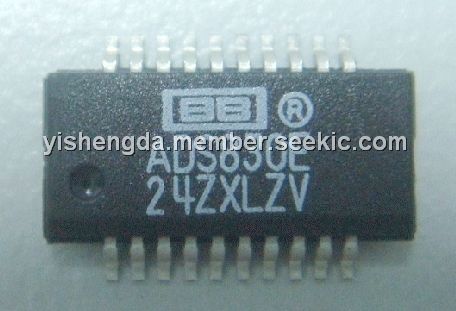

The ADS830E is a pipeline, CMOS analog-to-digital converter that operates from a single +5V power supply. This converter provides excellent performance with a single-ended input and can be operated with a differential inputfor added spurious performance. This high performance converter includes an 8-bit quantizer, high band width track/hold, and a high accuracy internal reference. The ADS830E also allows for the user to disable the internal reference an dutilize external references. This external reference optionprovides excellent gain and offset matching when used inmulti-channel applications or in applications where DC fullscale range adjustment is required.The ADS830E employs digital error correction techniques toprovide excellent differential linearity for demanding im-aging applications. Its low distortion and high SNR give the extra margin needed for medical imaging, communica-tions, video, and test instrumentation.The ADS830E is specified at a maximum sampling frequency of 60MHz and a single-ended input range of 1.5Vto 3.5V. Applications include medical imaging, video digitizing, communications and disk-drive control.
Parametrics
ADS830E absolute maximum ratings: (1)Analog Input:–0.3V to (+VS + 0.3V); (2)Logic Input: –0.3V to (+VS + 0.3V); (3)Case Temperature: +100℃; (4)Junction Temperature: +150℃; (5)Storage Temperature: +150℃.
Features
ADS830E features: (1)high snr: 49.5dB; (2)internal/external reference option; (3)single-ended or differential analog input; (4)programmable input range: 1Vp-p /2Vp-p; (5)low power: 170mW; (6)low dnl: 0.2LSB; (7)single +5V supply operation; (8)20-pin ssop package.

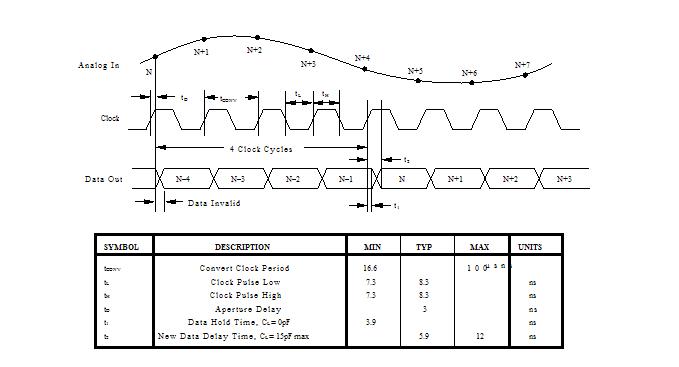

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS830E |
Texas Instruments |
ADC (A/D Converters) 8-Bit 60 MSPS SE/Diff Inputs |
Data Sheet |
|
|
||||||||||||
|
ADS830E/2K5 |
Texas Instruments |
ADC (A/D Converters) 8-Bit 60 MSPS SE/Diff Inputs |
Data Sheet |
|
|
||||||||||||
|
ADS830EG4 |
Texas Instruments |
ADC (A/D Converters) 8-Bit 60 MSPS SE/Diff Inputs |
Data Sheet |
|
|
||||||||||||
|
ADS830E/2K5G4 |
Texas Instruments |
ADC (A/D Converters) 8-Bit 60 MSPS SE/Diff Inputs |
Data Sheet |
|
|
||||||||||||
