Product Summary

The DG444DJ is a Quad SPST CMOS Analog Switch. Application areas of the DG444DJ include Audio Switching, Battery Powered Systems, Data Acquisition.

Parametrics

DG444DJ absolute maximum ratings: (1)V+ to V– : 44 V; (2)GND to V–: 25 V; (3)VL: (GND –0.3 V) to (V+) + 0.3 V; (4)Digital Inputsa VS, VD: (V–) –2 V to (V+) +2 V; (5)Continuous Current (Any Terminal) : -30 mA; (6)Current, S or D (Pulsed 1 ms, 10% duty cycle) : 100 mA; (7)Storage Temperature : –65 to 125°C.

Features

DG444DJ features: (1)Low On-Resistance: 50 Ω; (2)Low Leakage: 80 pA; (3)Low Power Consumption: 22 nW; (4)Fast Switching Action—tON: 120 ns; (5)Low Charge Injection; (6)DG211/DG212 Upgrades; (7)TTL/CMOS Logic Compatible.

Diagrams

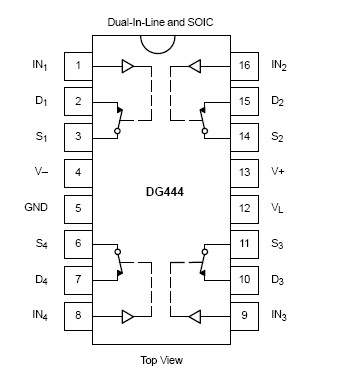

DG444DJ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DG444DJ
DG444DJ

Vishay/Siliconix

Analog Switch ICs SPST Analog Switch

Data Sheet

0-290: $1.07
290-500: $0.98
500-1000: $0.95
1000-2000: $0.87
DG444DJ+
DG444DJ+

Maxim Integrated Products

Analog Switch ICs Quad SPST CMOS Normally Closed

Data Sheet

0-1: $2.08
1-25: $1.39
25-50: $0.98
50-250: $0.96
DG444DJ-E3
DG444DJ-E3

Vishay/Siliconix

Analog Switch ICs SPST Analog Switch

Data Sheet

0-1: $0.89
1-10: $0.81
10-100: $0.71
100-250: $0.64
