Product Summary

The STM32F103VET6 is a high-density performance line ARM-based 32-bit MCU with 256 to 512KB flash, USB, CAN, 11 timers, 3 ADCs, 13 communication interfaces. The STM32F103VET6 operates in the –40 to +105℃ temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.

Parametrics

STM32F103VET6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): –0.3 to 4.0V; (2)Input voltage on five volt tolerant pin(2): VSS - 0.3 to +5.5 V; (3)Input voltage on any other pin(2): VSS-0.3 to VDD+0.3 V; (4)Variations between different VDD power pins: 50 mV; (5)Variations between all the different ground pins: 50 mV.

Features

STM32F103VET6 features: (1)Core: ARM 32-bit Cortex-M3 CPU; (2)256 to 512 Kbytes of Flash memory; (3)up to 64 Kbytes of SRAM; (4)Flexible static memory controller with 4 ; (5)Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories; (6)LCD parallel interface, 8080/6800 modes; (7)Clock, reset and supply management; (8)Low power; (9)3 × 12-bit, 1 μs A/D converters (up to 21 channels); (10)2 × 12-bit D/A converters; (11)DMA: 12-channel DMA controller; (12)Up to 112 fast I/O ports; (13)Up to 11 timers; (14)Up to 13 communication interfaces; (15)CRC calculation unit, 96-bit unique ID.

Diagrams

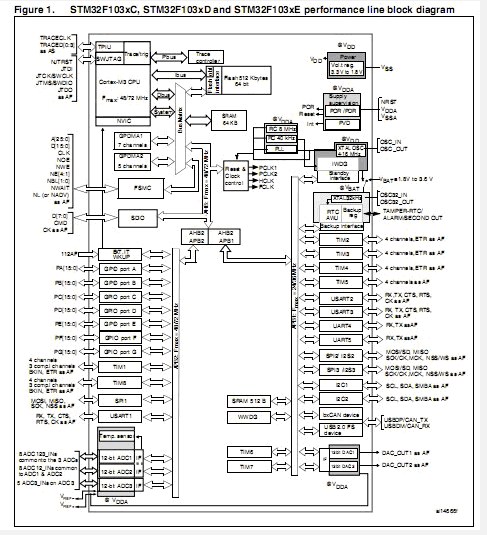

STM32F103VET6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

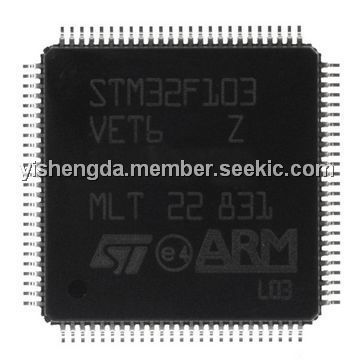

STM32F103VET6
STM32F103VET6

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex M3 Performance LINE

Data Sheet

0-1: $6.38
1-10: $5.67
10-100: $4.64
100-250: $4.33
STM32F103VET6TR
STM32F103VET6TR

STMicroelectronics

ARM Microcontrollers (MCU) 32-Bit Cortex 64Kb Performance Line

Data Sheet

0-651: $3.92
651-1000: $3.40
1000-2000: $3.31
