Product Summary
The GT60M301 is a silicon n channel igbt.
Parametrics
GT60M301 absolute maximum ratings: (1)Collector-emitter voltage VCES: 600 V; (2)Gate-emitter voltage VGES : 25 V; (3)Emitter-collector forward DC IECF 60 current: 60A; (4)Collector power dissipation(Tc 25°C): 200 W; (5)Junction temperature : 150 °C; (6)Storage temperature range: -55~150 °C.
Features
GT60M301 features: (1)Enhancement-mode; (2)High speed: tf = 0.30 μs (typ.) (IC = 60 A); (3)Low saturation voltage: VCE (sat) = 1.55 V (typ.) (IC = 60 A).

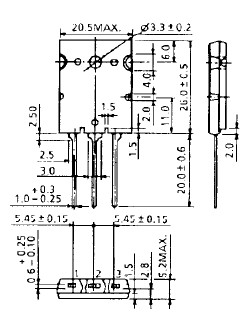

Diagrams
 |
