CA3140

CA3140, amplifier, DIP, Intersil, 36V, 1mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.30

PartNumber:: CA3140

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. bei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-09

From Other Seller

Part Number:CA3140
US $0.20 - 0.30
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

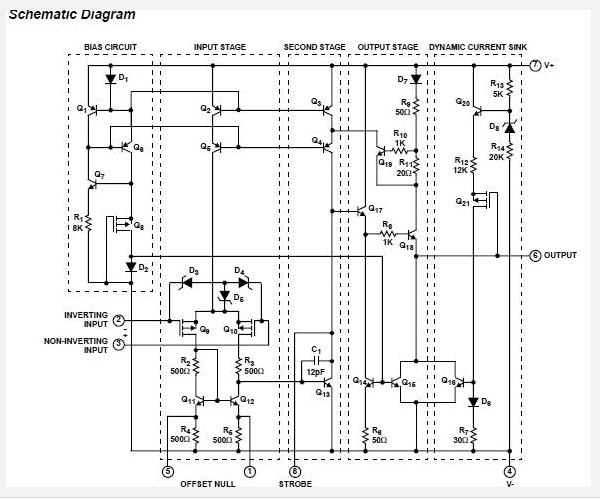

The CA3140 is an integrated circuit operational amplifier that combines the advantages of high voltage PMOS transistors with high voltage bipolar transistors on a single monolithic chip. The CA3140 features gate protected MOSFET (PMOS) transistors in the input circuit to provide very high input impedance, very low input current, and high speed performance. The CA3140 operates at supply voltage from 4V to 36V. The operational amplifier is internally phase compensated to achieve stable operation in unity gain follower operation. The applications of the CA3140 include Ground-Referenced Single Supply Amplifiers in Automobile and Portable Instrumentation, Sample and Hold Amplifiers, Long Duration Timers/Multivibrators and so on.

Parametrics

CA3140 absolute maximum ratings: (1)DC Supply Voltage (Between V+ and V- Terminals): 36V; (2)Differential Mode Input Voltage: 8V; (3)DC Input Voltage: (V+ +8V) To (V- -0.5V); (4)Input Terminal Current: 1mA; (5)Output Short Circuit Duration: Indefinite.

Features

CA3140 features: (1)MOSFET Input Stage; (2)Very High Input Impedance (ZIN) -1.5TΩ(Typ); (3)Very Low Input Current (Il) -10pA (Typ) at ±5V; (4)Wide Common Mode Input Voltage Range (VlCR) - Can be Swung 0.5V Below Negative Supply Voltage Rail; (5)Output Swing Complements Input Common Mode Range; (6)Directly Replaces Industry Type 741 in Most Applications.
