Product Summary

The W49V002A is a 256k x 8 cmos flash memory with lpc interface. The unique cell architecture of the W49V002A results in fast program/erase operations with extremely low current consumption.

Parametrics

W49V002AP absolute maximum ratings: (1)Power Supply Voltage to Vss Potential: -0.5 to +4.1 V; (2)Operating Temperature: 0 to +70 °C; (3)Storage Temperature: -65 to +150 °C; (4)D.C. Voltage on Any Pin to Ground Potential: -0.5 to VDD +0.5 V; (5)Transient Voltage (<20 nS ) on Any Pin to Ground Potential: -1.0 to VDD +0.5 V.

Features

W49V002AP features: (1)Fast Erase operation: 150 mS (typ.); (2)Endurance: 10K cycles (typ.); (3)Twenty-year data retention; (4)Hardware data protection; (5)Latched address and data; (6)TTL compatible I/O; (7)Available packages: 32L PLCC and 32L STSOP.

Diagrams

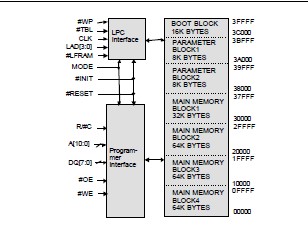

W49V002AP block diagram
