Product Summary

The DS90C383 is a transmitter convert 28 bits of LVCMOS/LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams.

Parametrics

DS90C383 absolute maximum ratings: (1)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (2)CMOS/TTL Output Voltage: -0.3V to (VCC + 0.3V); (3)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (4)Junction Temperature: +150°C; (5)Storage Temperature: -65°C to +150°C.

Features

DS90C383 features: (1)Single 3.3V supply; (2)Chipset (Tx + Rx) power consumption < 250 mW (typ); (3)Power-down mode (< 0.5 mW total); (4)Single pixel per clock XGA (1024x768) ready; (5)Supports VGA, SVGA, XGA and higher addressability.; (6)Up to 227 Megabytes/sec bandwidth; (7)Up to 1.8 Gbps throughput; (8)Narrow bus reduces cable size and cost.

Diagrams

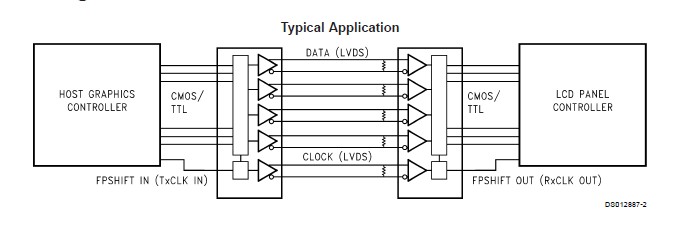

DS90C383 block diagram
