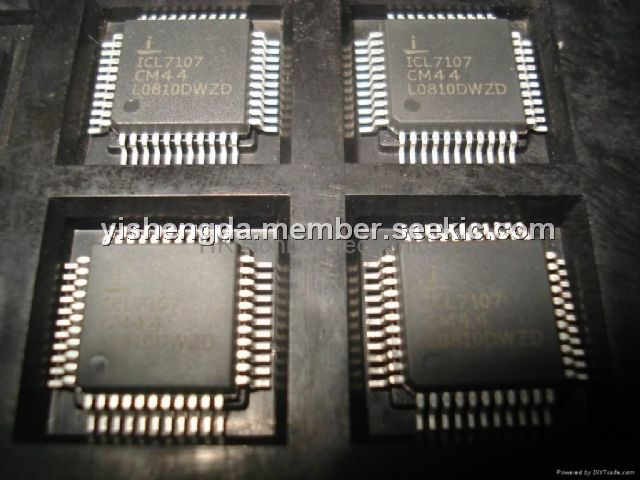

ICL7107CM44

A/D Converters, QFP, 3 1/2 Digit, ICL7107CM44, -9V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.80

PartNumber:: ICL7107CM44

Brand:: Intersil Corporation - Intersil | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. bei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-28

From Other Seller

Part Number:ICL7107CM44
US $0.50 - 0.80
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The Intersil ICL7107CM44 is a high performance, low power, 31/2 digit A/D converter. Included are seven segment decoders, display drivers, a reference, and a clock. The ICL7107CM44 will directly drive an instrument size light emitting diode (LED) display. The ICL7106 and ICL7107CM44 bring together a combination of high accuracy, versatility, and true economy. It features autozero to less than 10μV, zero drift of less than 1μV/oC, input bias current of 10pA (Max), and rollover error of less than one count. True differential inputs and reference are useful in all systems, but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers. Finally, the true economy of single power supply operation, enables a high performance panel meter to be built with the addition of only 10 passive components and a display.

Parametrics

ICL7107CM44 absolute maximum ratings: (1)Supply Voltage, ICL7107, V+ to GND: 6V; ICL7107, V- to GND: -9V; (2)Analog Input Voltage (Either Input): V+ to V-; (3)Reference Input Voltage (Either Input): V+ to V- ; (4)Clock Input, ICL7107: GND to V+.

Features

ICL7107CM44 features: (1)Guaranteed Zero Reading for 0V Input on All Scales; (2)True Polarity at Zero for Precise Null Detection; (3)1pA Typical Input Current; (4)True Differential Input and Reference, Direct Display Drive; (5)Low Noise - Less Than 15μVP-P; (6)On Chip Clock and Reference; (7)Low Power Dissipation - Typically Less Than 10mW; (8)No Additional Active Circuits Required; (9)Enhanced Display Stability; (10)Pb-Free Plus Anneal Available (RoHS Compliant).
