Product Summary
The PCM3500E is a Low Voltage, Low Power, 16-Bit, Mono VOICE/MODEM CODEC. It is designed for modem Analog Front End (AFE) and speech processing applications. The PCM3500E’s low power operation from +2.7V to +3.6V power supplies, along with an integrated power-down mode, make it ideal for portable applications. The PCM3500E integrates all of the functions needed for a modem or voice CODEC, including delta-sigma digital-to-analog and analog-to-digital converters, input anti-aliasing filter, digital high-pass filter for DC blocking, and an output low-pass filter. Applications of the PCM3500E include (1)Software modems for: Personal Digital Assistant; Notebook and Hand-Held PCs; Set-Top Box; Digital Television; Embedded Systems; (2)Portable voice recorder/player; (3)Speech recognition/synthesis; (4)Teleconferencing products.
Parametrics
PCM3500E absolute maximum ratings: (1)Supply Voltage, +VDD, +VCC: +6.5V; (2)Supply Voltage Differences: ±0.1V; (3)GND Voltage Differences: ±0.1V; (4)Digital Input Voltage: –0.3V to VDD + 0.3V; (5)Input Current (any pins except supply): ±10mA; (6)Power Dissipation: 300mW; (7)Operating Temperature Range: –25℃ to +85℃; (8)Storage Temperature: –55℃ to +125℃; (9)Junction Temperature: 150℃; (10)Lead Temperature (soldering, 5s): +260℃; (reflow, 10s): +235℃.
Features
PCM3500E features: (1)16-bit delta-sigma dac and adc; (2)designed for modem analog front end: supports up to 56kbps operation; (3)analog performance: sampling frequency: 7.2khz to 26khz; dynamic range: 88db (typ) at fs = 8khz, fin = 1khz; (4)system clock: 512fs; (5)master or slave operation; (6)on-chip crystal oscillator circuit; (7)adc-to-dac loop-back mode; (8)time slot mode supports up to four codecs on a single serial interface; (9)power-down mode: 60μa (typ).

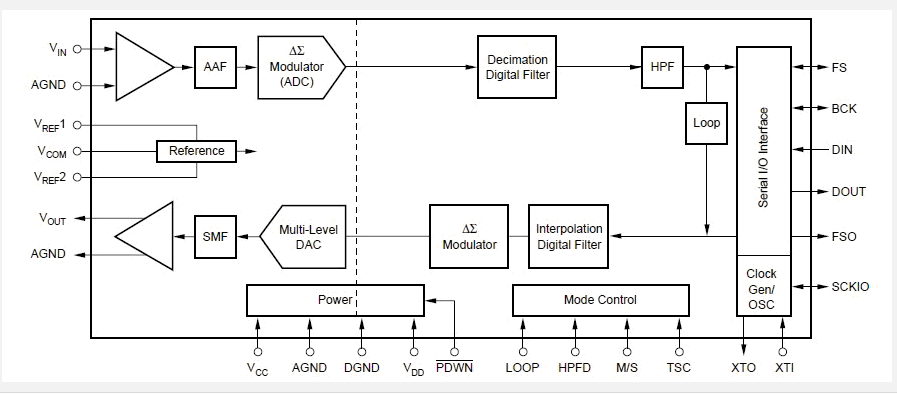

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCM3500EG4 |
Texas Instruments |
Audio CODECs Lo-Vlt Lo-Pwr Mono Voice/Modem Codec |
Data Sheet |
|
|
||||||||||||
|
PCM3500E |
Texas Instruments |
Audio CODECs Lo-Vlt Lo-Pwr Mono Voice/Modem Codec |
Data Sheet |
|
|
||||||||||||
|
PCM3500E/2KG4 |
Texas Instruments |
Audio CODECs Lo-Vlt Lo-Pwr Mono Voice/Modem Codec |
Data Sheet |
|
|
||||||||||||
|
PCM3500E/2K |
Texas Instruments |
Audio CODECs Lo-Vlt Lo-Pwr Mono Voice/Modem Codec |
Data Sheet |
|
|
||||||||||||
