Product Summary
The 79L05 is a fixed negative-voltage integrated-circuit voltage regulator is designed for a wide range of applications. These include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used to control series pass elements to make high-current voltage-regulator circuits. One of these regulators can deliver up to 100 mA of output current. The internal current-limiting and thermal-shut down features make them essentially immune to overload. When used as a replacement for a zener-diode and resistor combination, these devices can provide effective improvement in output impedance of two orders of magnitude, with lower bias current.
Parametrics
79L05 absolute maximum ratings: (1)Output voltage: 7V to20 V 1mA to 400mA; (2)Full range: -4.75V to -5.25V IO = 1 mA to 70 mA ; (3)Input: VI =-7V to -20V ; (4)Full range: 25°C 15 to 150mV; (5)Voltage regulation: VI =-8V to -20V ; (6)Output: IO = 1 mA to 100 mA.
Features
79L05 features: (1)3-Terminal Regulators; (2)Output Current Up to 100 mA; (3)No External Components Required; (4)Internal Thermal-Overload Protection; (5)Internal Short-Circuit Current Limiting; (6)Direct Replacement for Motorola MC79L00 Serie.

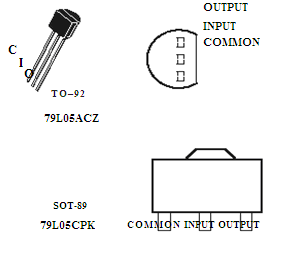

Diagrams
