Product Summary
The LM1876TF is a stereo audio amplifier capable of delivering typically 20W per channel of continuous average output power into a 4W or 8W load with less than 0.1% (THD + N). Each amplifier has an independent smooth transition fade-in/ out mute and a power conserving standby mode which can be controlled by external logic.
Parametrics
LM1876TF absolute maximum ratings: (1)Supply Voltage |VCC| + |VEE|(No Input): 64V; (2)Supply Voltage |VCC| + |VEE|(with Input): 64V; (3)Common Mode Input Voltage: (VCC or VEE) and |VCC| + |VEE|≤ 54V; (4)Differential Input Voltage: 54V; (5)Output Current: Internally Limited; (6)Power Dissipation (Note 6): 62.5W; (7)ESD Susceptability: 2000V; (8)Junction Temperature: 150℃; (9)Thermal Resistance: Isolated TF-Package, θJC: 2℃/W; Non-Isolated T-Package, θJC: 1℃/W; (10)Soldering Information, TF Package (10 sec.): 260℃; (11)Storage Temperature: -40℃ to +150℃.
Features
LM1876TF features: (1)SPiKe Protection; (2)Minimal amount of external components necessary; (3)Quiet fade-in/out mute mode; (4)Standby-mode; (5)Isolated 15-lead TO-220 package; (6)Non-Isolated 15-lead TO-220 package.

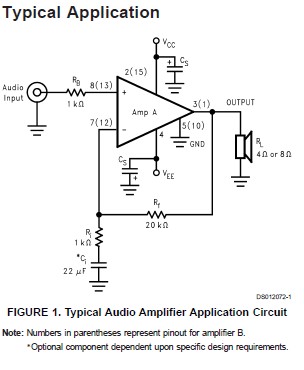

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM1876TF |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
 |
LM1876TF/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
