Product Summary

The MFRC500 is a Highly Integrated ISO 14443A Reader IC. The MFRC500 supports all layers of ISO14443A. The internal transmitter part is able to drive a proximity antenna (up to 100mm) directly without additional active circuitry.

Parametrics

MFRC500 absolute maximum ratings: (1)Digital Supply Voltage: 5.5V; (2)Digital Supply Voltage: 5.5V; (3)Digital Supply Voltage: 5.5V; (4)Digital Supply Voltage: 6 mA.

Features

MFRC500 features: (1)Comfortable send and receive FIFO buffer; (2)Anti-collision procedure support; (3)Bit- and byte-oriented framing; (4)Unique serial number; (5)Onboard timer circuit.

Diagrams

MFRC500 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

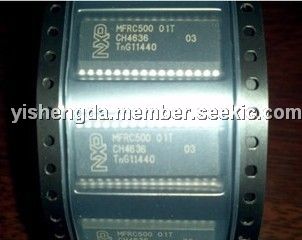

MFRC50001T
MFRC50001T

Other


Data Sheet

Negotiable
MFRC50001T/0FE,112
MFRC50001T/0FE,112

NXP Semiconductors

RFID Transponder MIFARE READER

Data Sheet

0-1: $6.51
1-25: $5.33
25-100: $4.81
100-250: $4.03
