Product Summary

The ULN2803APG is a high voltage, high current darlington driver comprised of eight NPN darlington pairs. All units feature integral clamp diodes for switching inductive loads. Applications of the ULN2803APG include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.

Parametrics

ULN2803APG absolute maximum ratings: (1)Output sustaining voltage VCE (SUS): -0.5 to 50 V ; (2)Output current IOUT: 500 mA / ch; (3)Input voltage VIN: -0.5 to 30 V ; (4)Clamp diode reverse voltage VR: 50 V ; (5)Clamp diode forward current IF: 500 mA ; (6)Power dissipation: 1.47W; (7)Operating temperature Topr : -40 to 85℃; (8)Storage temperature Tstg: -55 to 150℃.

Features

ULN2803APG features: (1)Output current (single output) 500 mA (Max.) ; (2)High sustaining voltage output 50 V (Min.) ; (3)Output clamp diodes ; (4)Inputs compatible with various types of logic. ; (5)Package Type-APG : DIP-18pin ; (6)Package Type-AFWG : SOL-18pin.

Diagrams

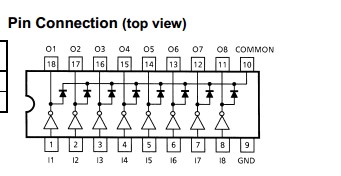

ULN2803APG Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ULN2803APG
ULN2803APG

Other


Data Sheet

Negotiable
ULN2803APG(5,M)
ULN2803APG(5,M)

Toshiba

Transistors Darlington 8CH. 50V/.5A IFD IC

Data Sheet

Negotiable
ULN2803APG(O,N,HZN
ULN2803APG(O,N,HZN

Toshiba

Transistors Darlington 7-Ch 500mA 50V NPN Darlington Trans

Data Sheet

0-1: $0.38
1-10: $0.34
10-100: $0.31
100-250: $0.27
ULN2803APG(O,M)
ULN2803APG(O,M)

Toshiba

Transistors Darlington 8-ch 500mA 50V 2.7 kOhm 5V CMOS

Data Sheet

0-1: $0.27
1-10: $0.25
10-100: $0.23
100-250: $0.22
