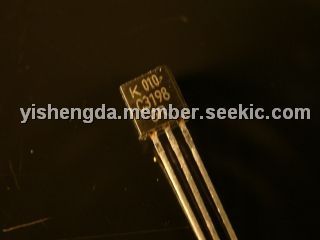

Product Summary
The 2SC3198 is a silicon NPN transistor. The applications of it include: low frequency power amplifiers; general purpose switching circuits.
Parametrics
2SC3198 absolute maximum ratings: (1)Collector-base voltage VCBO: 35V; (2)Collector-emitter voltage VCEO: 30V; (3)Emitter-base voltage VEBO: 5V; (4)Collector current IC: 800mA; (5)Emitter current IE: -800mA; (6)Collector power dissipation PC: 600mW; (7)Junction temperature Tj: 150℃; (8)Storage temperature range Tstg: -55~150℃.
Features
2SC3198 features: (1)Excellent hFE vs, collector current characteristics; (2)Pc=600mW, Ic=800mA max; (3)VCE(sat)=0.5V max at IC=500mA, IB=20mA; (4)Complementary to the 2SA1271.

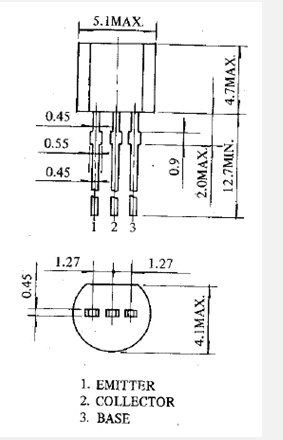

Diagrams
 |
