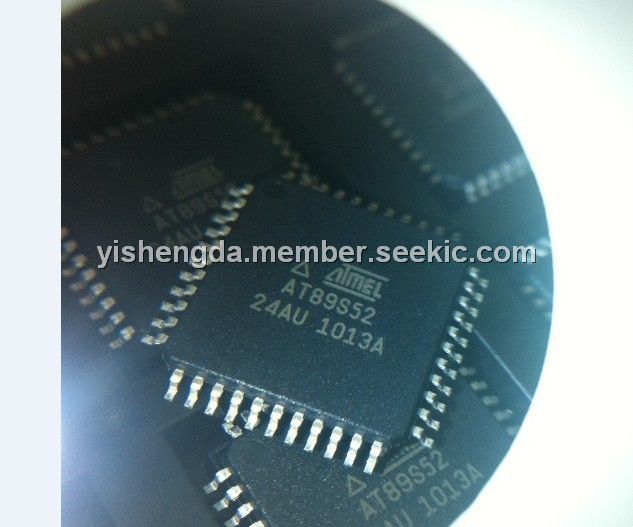

AT89S52-24AU

AT89S52-24AU, high-performance CMOS, 8-bit, microcontroller, 8K, 24MHZ, 44-TQFP, 4.0V to 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.80

PartNumber:: AT89S52-24AU

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. bei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-30

From Other Seller

Part Number:AT89S52-24AU
US $0.50 - 0.80
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

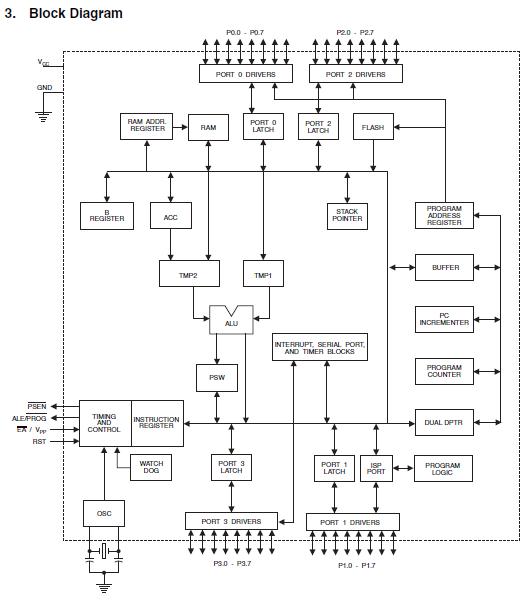

The AT89S52-24AU is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The device is manufactured using Atmels high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pin out. The AT89S52-24AU provides the following standard features: 8K bytes of Flash, 256 bytes of RAM, 32 I/O lines, Watchdog timer, two data pointers, three 16-bit timer/counters, a six-vector two-level interrupt architecture, a full duplex serial port, on-chip oscillator, and clock circuitry. In addition, the AT89S52-24AU is designed with static logic for operation down to zero frequency and supports two software selectable power saving modes.

Parametrics

AT89S52-24AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4) Maximum Operating Voltage: 6.6V; (5) DC Output Current: 15.0mA.

Features

AT89S52-24AU features: (1)Compatible with MCS 51 Products; (2)8K Bytes of In-System Programmable (ISP) Flash Memory: Endurance: 1000 Write/Erase Cycles; (3)4.0V to 5.5V Operating Range; (4)Fully Static Operation: 0 Hz to 33 MHz; (5)Three-level Program Memory Lock; (6)256 x 8-bit Internal RAM; (7)32 Programmable I/O Lines; (8)Three 16-bit Timer/Counters; (9)Eight Interrupt Sources; (10)Full Duplex UART Serial Channel; (11)Low-power Idle and Power-down Modes; (12)Interrupt Recovery from Power-down Mode.
