HCPL0611

Product Summary

The HCPL0611 is an optically coupled gate that combine a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification of 5,000 V/ms for the HCPL0611. This unique design provides maximum ac and dc circuit isolation while achieving TTL compatibility. The optocoupler ac and dc operational parameters are guaranteed from -40°C to +85°C allowing troublefree system performance. The HCPL0611 is suitable for high speed logic interfacing, input/output buffering, as line receivers in environments that conventional line receivers cannot tolerate and are recommended for use in extremely high ground or induced noise environments.

Parametrics

HCPL0611 absolute maximum ratings:(1)Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 85℃; (3)Average Forward Input Current, IF, Single 8-Pin DIP Single SO-8 Widebody: 20mA; (4)Average Forward Input Current, IF, Dual 8-Pin DIP Dual SO-8: 15mA; (5)Reverse Input Voltage, VR, 8-Pin DIP, SO-8: 5V; (6)Input Power Dissipation, PI, Widebody: 40mW; (7)Supply Voltage, VCC: 7V; (8)Enable Input Voltage (Not to Exceed VCC by more than 500 mV), VE, Single 8-Pin DIP Single SO-8 Widebody: VCC+0.5V; (9)Enable Input Current, IE: 5mA; (10)Output Collector Current, IO: 50mA.

Features

HCPL0611 features:(1)5 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/X631, HCNW2601 and 10 kV/ms Minimum CMR at VCM = 1000 V for HCPLX611/X661, HCNW2611; (2)High Speed: 10 MBd Typical; (3)LSTTL/TTL Compatible; (4)Low Input Current Capability: 5 mA; (5)Guaranteed ac and dc Performance over Temperature: -40°C to +85°C; (6)Available in 8-Pin DIP, SOIC-8, Widebody Packages; (7)Strobable Output (Single Channel Products Only); (8)Safety Approval UL Recognized - 2500 V rms for 1 minute and 5000 V rms for 1 minute per UL1577; (9)CSA Approved VDE 0884 Approved with VIORM = 630 V peak for HCPL-2611 Option 060 and VIORM = 1414 V peak for; (10)HCNW137/26X1; (11)BSI Certified (HCNW137/26X1 Only); (12)MIL-STD-1772 Version Available (HCPL-56XX/66XX).

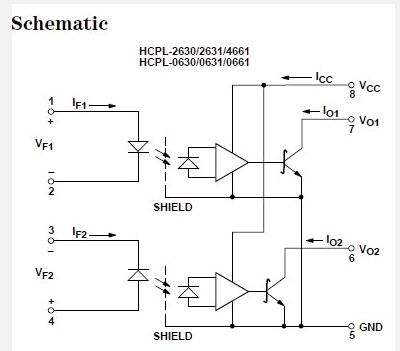

Diagrams
