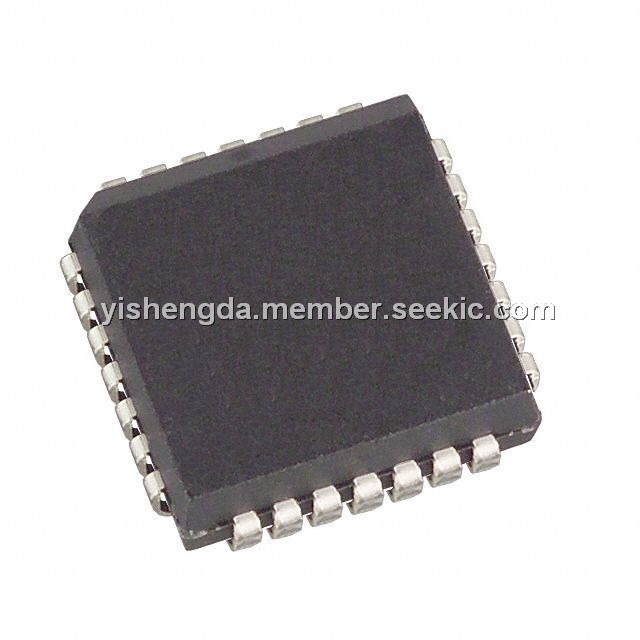

ICM7218CIQI

ICM7218CIQI, 8 Digit, LED Display Driver, PLCC, 6.5V, Maxim Integrated

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~7.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~7.00

PartNumber:: ICM7218CIQI

Brand:: Maxim Integrated Products - Maxim | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. bei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-08

From Other Seller

Part Number:ICM7218CIQI
US $6.00 - 7.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ICM7218CIQI is an 8 digit display driver. The Maxim ICM7218CIQI 8 digit, seven segment display drivers include input data latches, BCD to segment decoders, and all level translation and timing circuits needed to drive nonmultiplexed displays. The ICM7218CIQI is available in two data input configurations: a multiplexed BCD interface version and a microprocessor interface version. The multiplexed BCD interface version has four BCD data inputs and four separate digit strobes. The micro;processor interface versions, designated by an MM suffix, have four BCD data inputs, two digit address lines, and two chip selects or WRITE inputs. The ICM7218CIQI decodes the BCD data via an onboard character font ROM. There are two different character fonts available, hexadecimal and Code B.

Parametrics

ICM7218CIQI absolute maximum ratings: (1)Power Dissipation (Note 1): 0.5 W@ 70° C; (2)Supply Voltage: 6.5V; (3)Input Voltage (Any Terminal)(Note 2): V+ +0.3V, GROUND -0.3V; (4)Operating Temperature Range: -20℃ to +85℃; (5)Storage Temperature Range: -55℃ to +125℃; (6)Lead Temperature (Soldering 10 sec.): 300℃.

Features

ICM7218CIQI features: (1)Improved 2nd Source; (2)Directly drives Four Digit, 7 Segment Displays; (3)No external components needed; (4)Low Power CMOS - 25μW typ .
