Product Summary

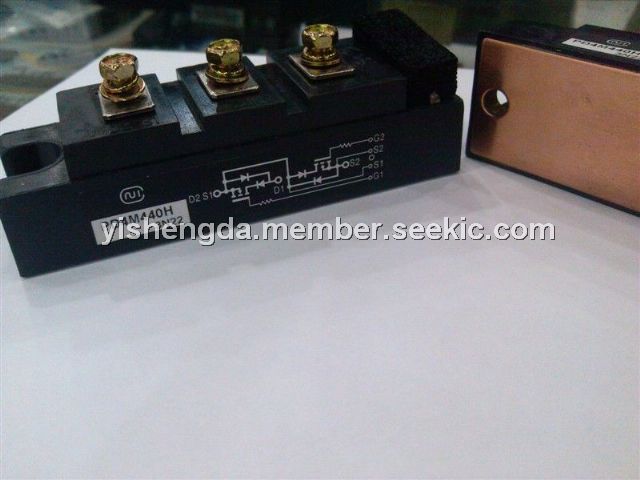

PD4M440H is a MOSFET MODULE.
Parametrics
PD4M440H absolute maximum ratings: (1)Drain-Source Voltage (VGS=0V): VDSS 500V; (2)Gate -Source Voltage: VGSS +/ - 20V ; (3)Continuous Drain Current: Duty=50% 30 (Tc=25°C) D.C.ID21 (Tc=25°C)A; (4)Pulsed Drain Current: IDM (60 Tc=25°C)A; (5)Total Power Dissipation: PD 230 (Tc=25°C)W; (6)Operating Junction Temperature Range: Tjw -40 to +150°C; (7)Storage Temperature Range: Tstg-40 to +125°C; (8)Isolation Voltage (Terminals to Base AC, 1 min.): VISO2000V.
Features
PD4M440H features: (1)Dual MOSFETs Cascaded Circuit; (2)Prevented Body Diodes of MOSFETs by SBDs, and Ultra Fast Recovery Diodes Connectedin Parallel; (3)300KHzHigh Speed Switching Possible.

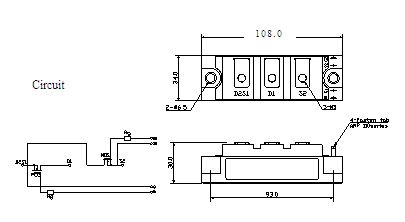

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PD4M440H |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PD4M440H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PD4M440L |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PD4M441H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PD4M441L |
Other |
|
Data Sheet |
Negotiable |
|
||||
