Product Summary
The PS2502-2 is a high isolation voltage single transistor type multi photocoupler. It is suitable for power supply, telephone/FAX, FA/OA equipment and programmable logic controller.
Parametrics
PS2502-2 absolute maximum ratings: (1)Diode: Reverse Voltage, VR: 6 V; Forward Current (DC), IF: 80 mA; Power Dissipation, PD: 150mW/ch; Peak Forward Current, IFP: 1 A; (2)Transistor: Collector to Emitter Voltage, VCEO: 80 V; Emitter to Collector Voltage, VECO: 7 V; Collector Current, IC: 50 mA/ch; Power Dissipation, PC: 150mW/ch; (3)Isolation Voltage, BV: 5 000 Vr.m.s.; (4)Operating Ambient Temperature, TA: -55 to +100 ℃; (5)Storage Temperature, Tstg: -55 to +150 ℃.
Features
PS2502-2 Features: (1)High isolation voltage; (2)High collector to emitter voltage; (3)High-speed switching; (4)UL approved.

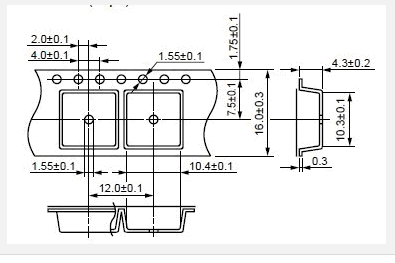

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS2502-2-A |
CEL |
Transistor Output Optocouplers Hi-Iso Darling 2-Ch |
Data Sheet |
Negotiable |
|
||||
|
PS2502-2 |
CEL |
Transistor Output Optocouplers Hi-Iso Darling 2-Ch |
Data Sheet |
Negotiable |
|
||||
