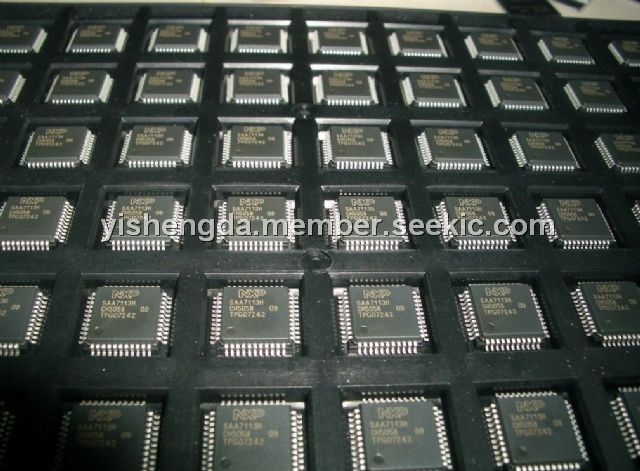

Product Summary
The SAA7113H is a 9-bit video input processor. The applications of the SAA7113H include Notebook (low power consumption), PCMCIA card application, AGP based graphics cards, Image processing, Video phone applications, Intercast and PC teletext applications.
Parametrics
SAA7113H absolute maximum ratings: (1)digital supply voltage: -0.5 to +4.6 V; (2)analog supply voltage: -0.5 to +4.6 V; (3)input voltage at analog inputs: -0.5 to VDDA + 0.5 (4.6 max) V; (4)output voltage at analog output: -0.5 to VDDA + 0.5 V; (5)input voltage at digital inputs and outputs: -0.5 to +5.5 V; (6)output voltage at digital outputs: -0.5 to VDDD + 0.5 V; (7)voltage difference between VSSA(all) and VSS(all): - 100 mV; (8)storage temperature: -65 to +150 ℃; (9)operating ambient temperature: 0 to 70 ℃; (10)operating ambient temperature under bias: -10 to +80 ℃; (11)electrostatic discharge all pins: -2000 to +2000 V.
Features
SAA7113H features: (1)Four analog inputs, internal analog source selectors; (2)Two analog preprocessing channels in differential CMOS style for best S/N-performance; (3)Fully programmable static gain or automatic gain control for the selected CVBS or Y/C channel; (4)Switchable white peak control; (5)Two built-in analog anti-aliasing filters; (6)Two 9-bit video CMOS Analog-to-Digital Converters (ADCs), digitized CVBS or Y/C-signals are available on the VPO-port via I2C-bus control.

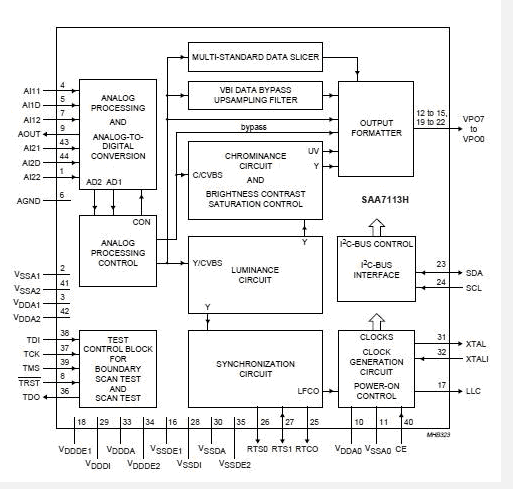

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
SAA7113H |
Other |
Data Sheet |
Negotiable |
|
||||||
SAA7113H/V2,518 |
NXP Semiconductors |
Video ICs VIDEO INPUT PROCESSOR (V9) |
Data Sheet |
Negotiable |
|
|||||
SAA7113H/V2,557 |
NXP Semiconductors |
Video ICs 9-BIT VIDEO INPUT |
Data Sheet |
Negotiable |
|
|||||
SAA7113HB |
NXP Semiconductors |
Video ICs 9-BIT VIDEO INPUT PROCESSOR |
Data Sheet |
Negotiable |
|
