Product Summary

The SP3232EEA is a RS-232 transceiver solution intended for portable or handheld applications such as notebook or palmtop computers. The SP3232ECT has a high-efficiency, charge-pump power supply that requires only 0.1μF capacitors in 3.3V operation. This charge pump allows the SP3232EEA to deliver true RS-232 performance from a single power supply ranging from +3.3V to +5.0.This series is ideal for portable or hand-held applications such as notebook or palmtop computers. The ESD tolerance of the SP3232EEA device is over ±15kV for both Human Body Model and IEC1000-4-2 Air discharge test methods. The SP3232EEA device has a low-power shutdown mode where the devices driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA.

Parametrics

SP3232EEA absolute maximum ratings: (1)Input Voltages: TxIN, EN: -0.3V to +6.0V, RxIN: ±15V; (2)Output Voltages: TxOUT: ±15V, RxOUT: -0.3V to (VCC + 0.3V); (3)Short-Circuit Duration: TxOUT: Continuous, Storage Temperature: -65°C to +150°C; (4)VCC: -0.3V to +6.0V; (5)V+ (NOTE 1): -0.3V to +7.0V; (6)V- (NOTE 1): +0.3V to -7.0V; (7)V+ + |V-| (NOTE 1): +13V; (8)ICC (DC VCC or GND current): ±100mA.

Features

SP3232EEA features: (1)Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply; (2)Minimum 120Kbps Data Rate Under Full Load; (3)1μA Low-Power Shutdown with Receivers Active (SP3222E); (4)Interoperable with RS-232 down to +2.7V power source; (5)Enhanced ESD Specifications: ±15kV Human Body Model, ±15kV IEC1000-4-2 Air Discharge, ±8kV IEC1000-4-2 Contact Discharge.

Diagrams

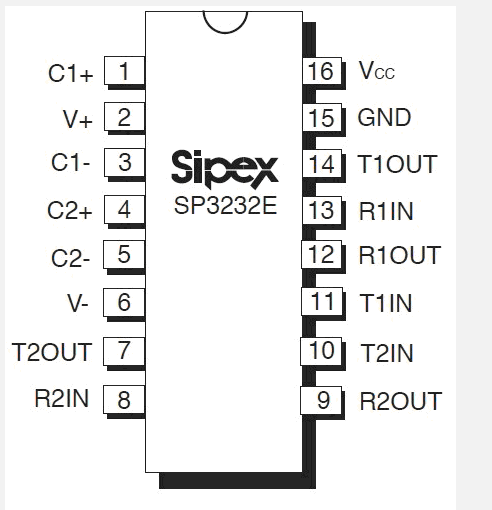

SP3232EEA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SP3232EEA-L
SP3232EEA-L

Exar

RS-232 Interface IC RS232 120 kbps temp -40C to 85C

Data Sheet

0-1: $0.93
1-25: $0.74
25-100: $0.65
100-250: $0.57
SP3232EEA-L/TR
SP3232EEA-L/TR

Exar

RS-232 Interface IC TRUE +3V-+5.5V RS-232

Data Sheet

0-940: $0.39
940-1000: $0.34
1000-1500: $0.34
1500-2000: $0.31
