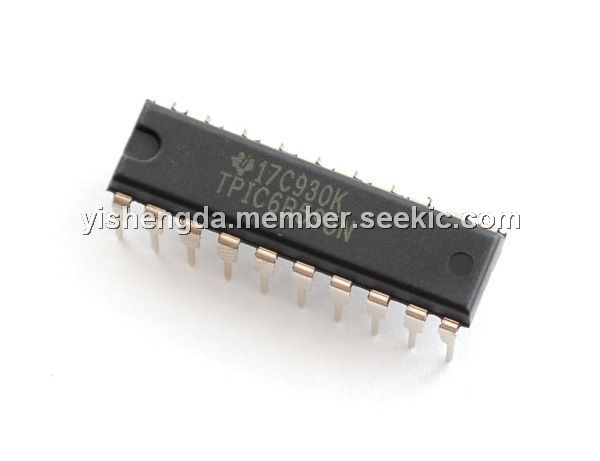

TPIC6B595N

8-bit shift register, medium-current power, 30 mJ, 50V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.10

PartNumber:: TPIC6B595N

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. bei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-02

From Other Seller

Part Number:TPIC6B595N
US $1.00 - 1.10
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TPIC6B595N is a monolithic, high-voltage,medium-current power 8-bit shift register designed for use in systems that require relatively high load power. The TPIC6B595N contains a built-involtage clamp on the outputs for inductive transient protection. Power driver applications include relays, solenoids, and other medium-current or high-voltage loads. Outputs are low-side, open-drain DMOS transistors with output ratings of 50V and 150-mA continuous sink-current capability. Each output provides a 500-mA typical current limit at TC=25℃. The current limit decreasesas the junction temperature increases for additional device protection.

Parametrics

TPIC6B595N absolute maximum ratings: (1)Logic supply voltage: 7 V; (2)Logic input voltage range: -0.3 V to 7 V; (3)Power DMOS drain-to-source voltage: 50 V; (4)Continuous source-to-drain diode anode current: 500 mA; (5)Pulsed source-to-drain diode anode current: 1 A; (6)Pulsed drain current: 500 mA; (7)Continuous drain current: 150 mA; (8)Peak drain current single output: 500 mA; (9)Single-pulse avalanche energy: 30 mJ; (10)Avalanche current: 500 mA; (11)Continuous total dissipation; (12)Operating virtual junction temperature range:–40℃ to 150℃; (13)Operating case temperature range:–40℃ to 125℃; (14)Storage temperature range: -65℃ to 150℃; (15)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds:260℃

Features

TPIC6B595N features: (1)Low rDS(on): 5Ω Typical; (2)Avalanche Energy: 30 mJ; (3)Eight Power DMOS-Transistor Outputs of 150-mA Continuous Current; (4)500-mA Typical Current-Limiting Capability; (5)Output Clamp Voltage: 50 V; (6)Devices Are Cascadable; (7)Low Power Consumption.
