Product Summary

The ICM7556IPD is a dual general purpose RC timer capable of generating accurate time delays or frequencies. The primary feature is an extremely low supply current, making ICM7556IPD ideal for battery-powered systems. Additional features include low THRESHOLD, TRIGGER, and RESET currents, a wide operating supply voltage range, and improved performance at high frequencies. And the ICM7556IPD is used in pulse generator,precision timing,time delay generation and so on.

Parametrics

ICM7556IPD absolute maximum ratings: (1)Supply Voltage:+18 V; (2)Output Current:100mA; (3)Power Dissipation:200mA; (4)Operating Temperature Range:-55°C to +125°C; (5)Storage Temperature:-65°C to +150°C; (6)Lead Temperature (Soldering 60 Seconds): +300°C.

Features

ICM7556IPD features: (1)Improved 2nd Source; (2)Wide Supply Voltage Range: 2-18V; (3)No Crowbarrlng of Supply During Output Transition; (4)Adjustable Duty Cycle; (5)Low THRESHOLD, TRIGGER and RESET Currents; (6)TTL Compatible; (7)Monolithic, Low Power CMOS Design.

Diagrams

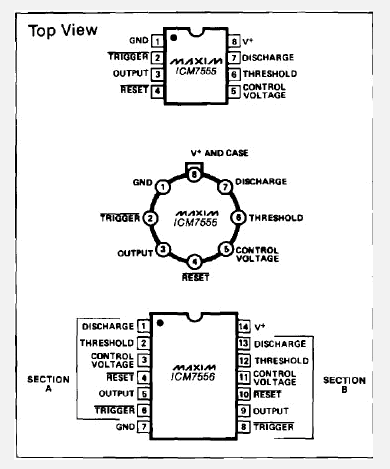

ICM7556IPD block diagram
