Product Summary

The SP708SE is a Low Power Microprocessor.

Parametrics

SP708SE absolute maximum ratings: (1)VCC: -0.3V to 6.0V; (2)VBATT: -0.3V to 6.0V; (3)All Other Inputs: -0.3V to (VCC +0.3V); (4)Input Current:; (5)VCC: 250mA; (6)VBATT: 50mA; (7)GND: 20mA; (8)All Other Inputs: 20mA.

Features

SP708SE features: (1)Reset Time Delay - 200ms; (2)Debounced TTL/CMOS - Compatible Manual - Reset Input; (3)Minimum component count; (4)60mA Maximum Operating Supply Current; (5)0.6mA Maximum Battery Backup Current; (6)0.1mA Maximum Battery Standby Current.

Diagrams

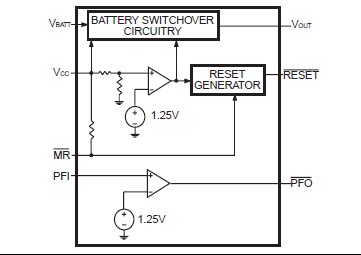

SP708SE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SP708SEN-L
SP708SEN-L

Exar

Supervisory Circuits LOW PWR MICROPROCESSOR

Data Sheet

0-1: $0.74
1-25: $0.56
25-100: $0.47
100-250: $0.40
SP708SEN-L/TR
SP708SEN-L/TR

Exar

Supervisory Circuits LOW PWR MICROPROCESSOR

Data Sheet

0-1850: $0.29
1850-2500: $0.27
